We can prototype new designs at incredible speed thanks to our highly skilled design engineers, harnessing our global expertise and delivering via our local teams.
|
NO. |
Description |
Parameter |
|
1. |
Certification |
CE and Rohs |
|
2. |
Voltage range |
1.5v~400v |
|
3. |
Power density range |
0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) |
|
4. |
Using temperature range |
-60~200°C(-140~392°F) |
|
5. |
Width range |
10mm~500mm(0.39"~19.68") |
|
6. |
Length range |
10mm~1800mm(0.39"~70.86") |
|
7. |
Thickness range |
Standard:0.126~0.266mm(0.005"~0.01") |
|
8. |
Plug |
Chinese,British, American, European and so on |
|
9. |
Quality guarantee |
1 year |
|
10. |
Life |
more than 4 years(normal useful) |
|
11. |
MOQ |
1 piece |
|
OEM and ODM is welcome, can print your logo |
||

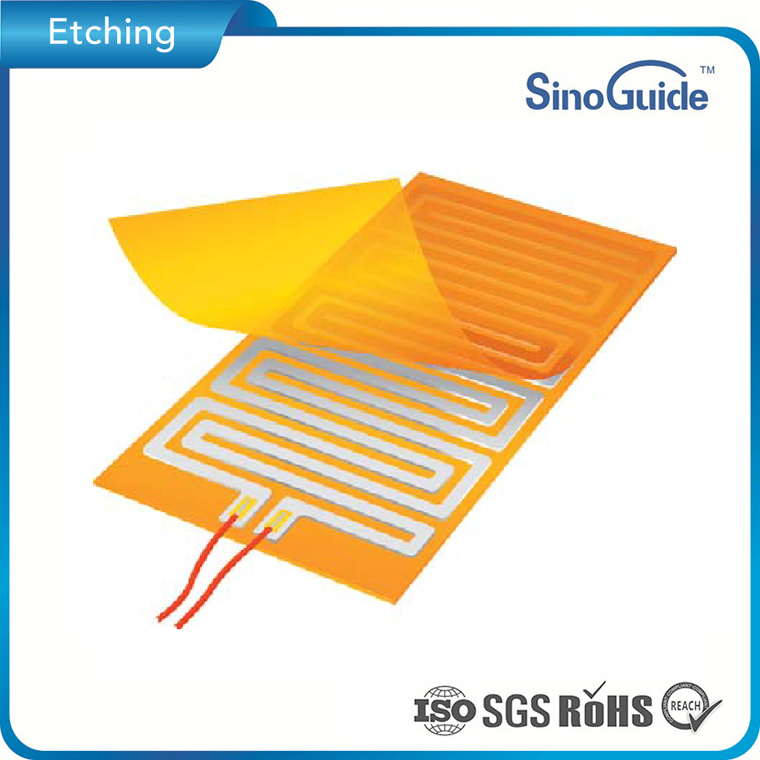

Kapton insulated heaters are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Kapton heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
