Photo Etched Car Plates

Product Presentation

High Quality Photo Chemical Etched Car Scuff Plates


Applications:



Thin metal parts’ chemical etching is an excellent choice for a wide range of designs and applications, offering tight tolerances, a long list of available materials & thicknesses, quick lead times, and competitive pricing. Through continuous innovation, SinoGuide has elevated this tried-and-true process to new levels of capability.





Product Description

Product name:

 High Quality Photo Etched Car Scuff Plates

Material:

Stainless steel, copper, silicon steel plate,or customize

Size:

According to customers

Thickness:

0.03-1.5mm is available

Technique:

High precision etching

Hole:

0.01mm(customize)

Spacing

0.018mm(customize)

Hole shape:

Round/ Square

Surface finish:

Clean .no burr

Features:

No burrs,No broken point,no plugging holes

Application:

Fiber filter,Textile machines or customize

Certificate:

RoHS,ISO

Inspection:

Two-dimension inspection machine,magnifier

Other Related Items

Price:

According to product specification

Sample Offer:

Within 3-6 days

Payment:

T/T,L/C,Paypal,Western Union

Lead time for mass production:

Within 6-10 days after payment

Production ability:

10000pcs/week

Metal process methods available:

Stamping,Chemical etching,Laser cutting

Acceptable file format:

DWG,DXF,IGES,PDF,JEPG

Standard met:

Customer specification,2D CAD drawing





 Advantages of Photo Etching:

•Low tooling cost, no need for expensive DIE/Mould
•Can fabricate more thinner metals(T=0.02-1.2 mm)
•No alteration process, the characteristics can be obtained as the designer intended
•High accuracy
•Various apertures, shapes and bar combinations
•Burr & Stress free manufacturing method
•Prototypes – fast turnaround to meet your needs
•High volume capabilities


SinoGuide provides high quality and performance photo etching components for customers, further more, our high production capacity can also fulfill your high-volume orders and shorten the lead time.

SinoGuide is also a one-stop solution provider, we can also provide you value added service such plating, polishing, stamping, PVD coating etc.







Product Photos

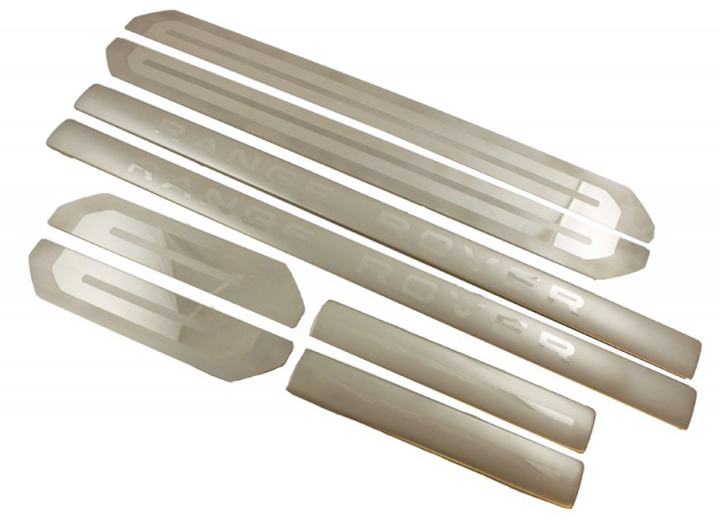

Photo Chemical Etched Car Scuff Plates

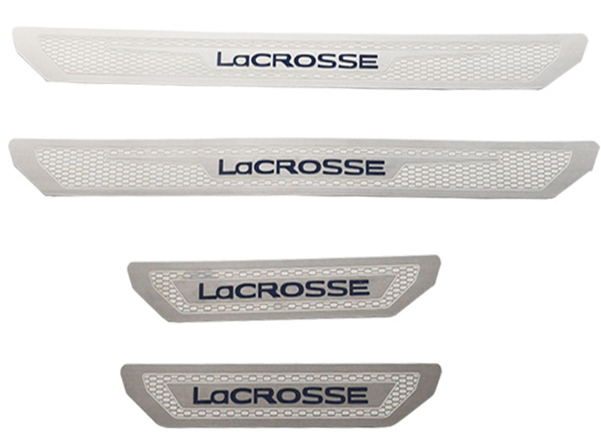

Photo Etched Car Scuff Plates, Door Sill Cover






Packaging & Shipping



 Strong Logistics System:



We can provide you with a full etching solution for your product range. Simply call us now for advice, free samples or a no obligation quote.

SinoGuide’s design and technical skills are recognised both by customers, and increasingly, by the major trade associations. As a result SinoGuide Technology has won awards for quality, design and innovation in etching.


Our Service

Our business is based on excellent customer service and strong customer relationships built up over many years.
